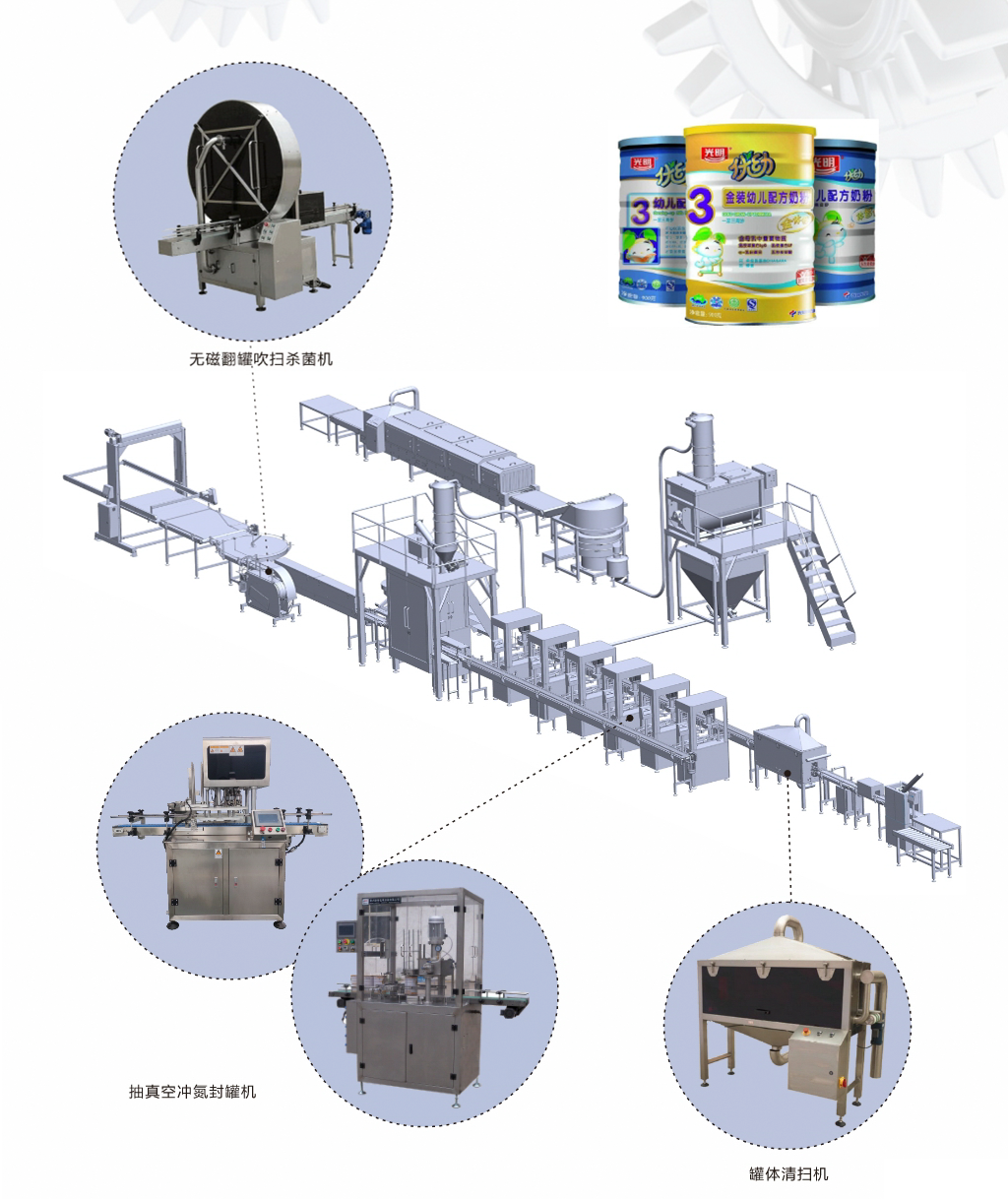

该生产线前处理设备由大袋清扫灭菌机、拆包平台、无尘投料站、真空输送机、粉体混合设备、储料仓等设备组成，后端灌装线由自动卸罐机、转盘进罐机、罐体清扫灭菌机、粉未称重灌装机、封罐机、打码机、翻罐器、罐体清扫机、防尘盖压盖机、装箱封箱机、码垛机等设备组成。

适用于各种粉剂、粉/颗粒混合物料的自动称量灌装，如奶粉、蛋白粉、特医粉未食品、药品粉末、营养代餐粉、鸡粉、食品添加剂等。

The pretreatment equipment of the production line is composed of large bag cleaning and sterilization machine, unpackingplatform, dust-free feeding station, vacuum conveyor, powder mixing equipment, storage bin and other equipment,The reafiling line is composed of automatic can unloader, turntable can feeder, can body cleaning and sterilization machine, powderweighing filing machine, can sealing machine, coding machine, can tipper, can body cleaning machine, dust cover cappingmachine, packing and sealing machine, stacking machine and other equipment.It is suitable for automatic weighing and filling of various powder, powder/particle mixture materials, such as milk powderprotein powder, special medical powder food, pharmaceutical powder, nutritional meal powder, chicken powder. foodadditives,etc.

性能优势

现场视频

技术参数

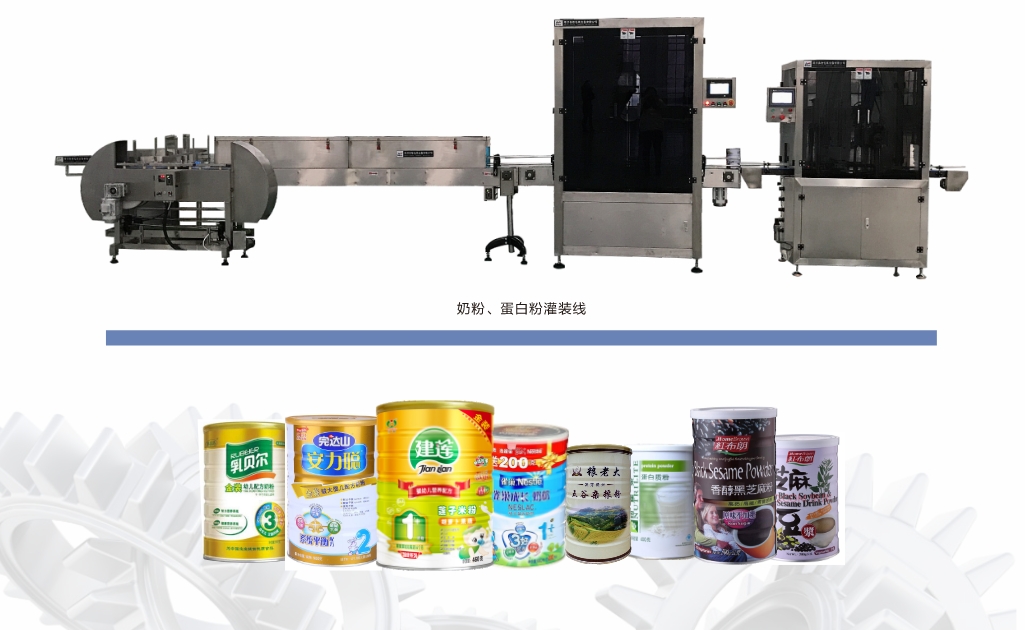

全自动奶粉/蛋白粉灌装生产线技术参数
Technical parameters of automatic milk powder/protein powder filling production line

灌装范围:100-2000克
Filling range:100-2000 g
计量误差:≤±1克
Measurement error:≤±1g
灌装方式:螺杆灌装(误差±1%)、在线称重灌装(误差≤±2克)、螺杆+称重补料灌装(误差≤±1克)
Filing method: screw filing (error + 1%), online weighing filing (error s + 2 g), screw+ weighing filling (error s + 1 g)
封罐方式:普通封罐、真空封罐、抽真空充氮气封罐
Sealing method: ordinary sealing, vacuum sealing, vacuum filling and nitrogen filling
整线速度:按需求设计
Whole line speed:desiqned as required
设备尺寸:按产线要求及车间布局设计
Equipment size: designed according to production line requirements and workshop layou
