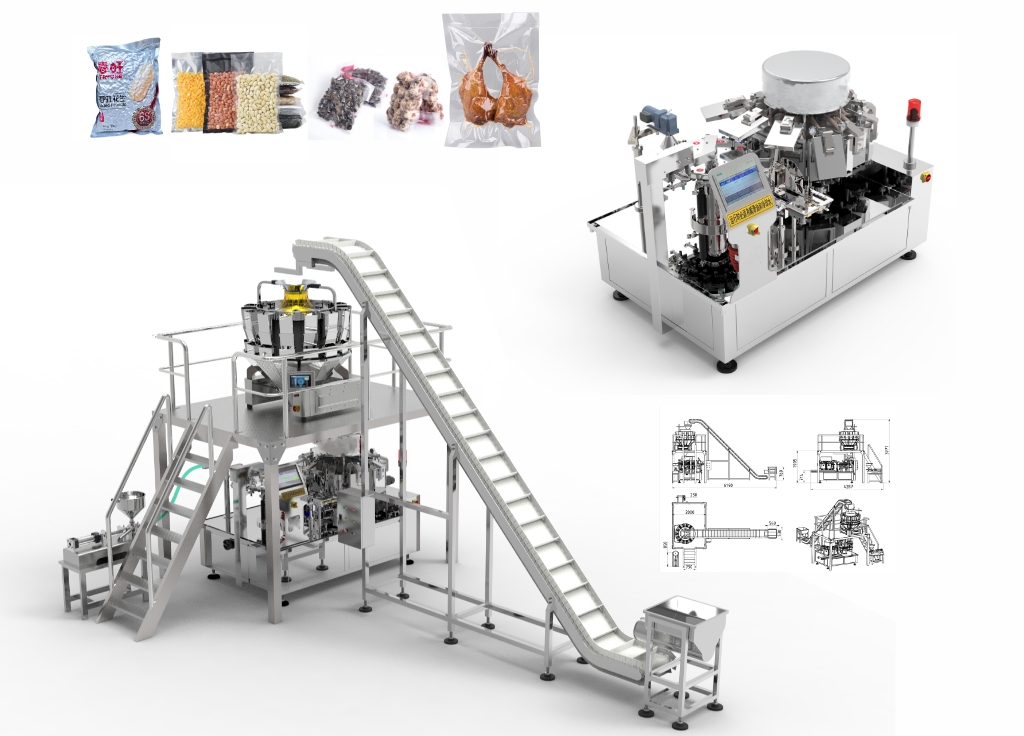

AT-GD8-ZK10Z全自动给袋式抽真空包装机
automatic bag vacuum packaging machine


该机能够使用机械手将包装袋自动取袋，自动撑开，自动上料，自动进行真空包装，真正实现自动化包装，通过更换不同的上料结构，可以对不同的物料进行自动包装，如:可以配液体及奇体定量灌装系统，对液体及音体定量真空包装，配多头称后可以对粉状及散装物料进行定量真空包装，配自动上料机后可以对块状物料边称量边真空包装，该包装机由PLC控制，人机界面操作，可以对整机进行监控，如果出现空袋及未上袋等异常情况，PLC均能对异常情况进行判断，然后输出异常信号，控制包装机采取相应措施，避免浪费物料及包装袋。

This machine can use a manipulator to automaticaly take out the bag, automatically open, automatically load, andautomatically carry out vacyum packaging, lt really realizes automatic packaging. By changing different loading structures, itcan automatically pack different materials. For example, it can be equipped with liquid and paste constant volume filingsystem, quantitative vacuum packaging of liguid and paste, and quantitative vacuum packaging of powder and bulk materialsafter equipped with multiple scales, After the automatic feeding machine is equipped, the bulk materials can be weighed andvacuum-packed, The packaging machine is controlled by Plc and operated by human-machine interface. it can monitor thewhole machine. lf there are abnormal conditions such as empty bags and not loaded bags, the PlC can judge the abnormalconditions, and then output the abnormal signal to control the packaging machine to take corresponding measures to avoidwaste of materials and packaging bags.


工作流程 Workflow
【1】第一工位:给袋;在袋仓上放预制袋，袋子可以向上和向下移动，当袋子下落时，利用吸盘取袋。
【2】第二工位:喷码;可喷印生产日期，生产批次号(选配)
【3】第三工位:开袋;在袋子的上下部位利用吸盘开袋
【4】第四工位:下料1;有个检测装置检测袋子是否打来，不打开不下料 反之，打开袋口就下料。
【5】第五工位:下料2预留/二次桶料
【6】第六工位:袋口清洁
【7】第七工位:预留工位
【8】第八工位:真空转接
