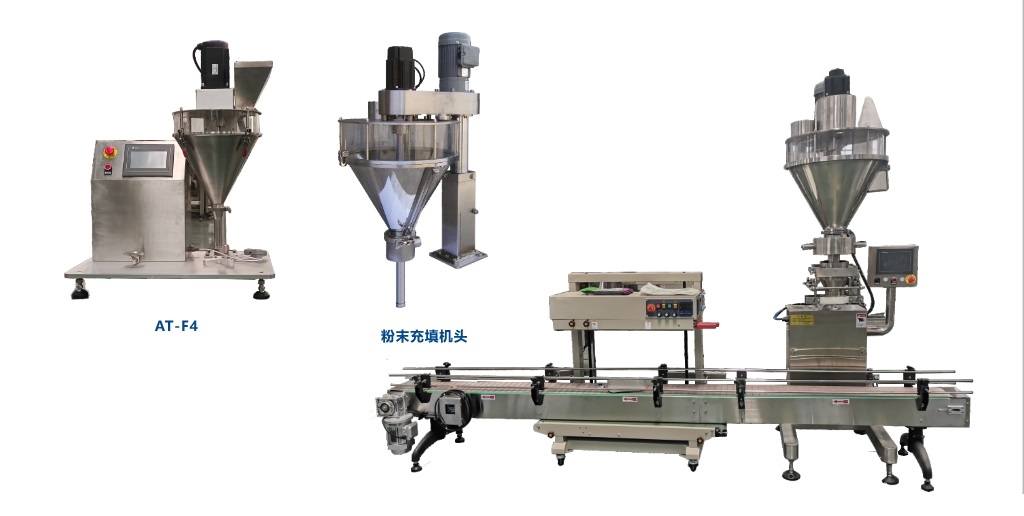

该系列包装机采用螺杆充填及电子称重反馈相结合的计量方式，微机控制，具有自动定量、自动充填、自动修正误差、计数、清料等功能。

This series of packaging machine adopts the combination of screw filing and electronic weighing feedback,Microcomputercontrollt has the function of automatic ration, automatic filling, automatic correction error, countina and cleanina.

适用于医药、化工、食品、农副产品等行业的粉末、粉粒混合物料的定量包装、定量灌装;如:复合调味品、天然调味品、食品添加剂、香精香料、面粉、奶粉、蛋白粉、固体饮料、白糖、味精、农药、兽药、洗衣粉、酶制剂、饲料添加剂、化工、新型建材等。

It is suitable for quantitative packaging and quantitative filing of powdery, fine qranular materials used in medicine, chemicaindustrv,ood, aaricuitural and sideline oroducts,such as compound seasonina, natural soices,food additives, favor spicesfour, milk powder, protein powder, solid drink, white sugar, monosodium glutamate, pesticides, veterinary druas. washingpowder, enzymes, feed additives, chemical industry, new building materials, etc.

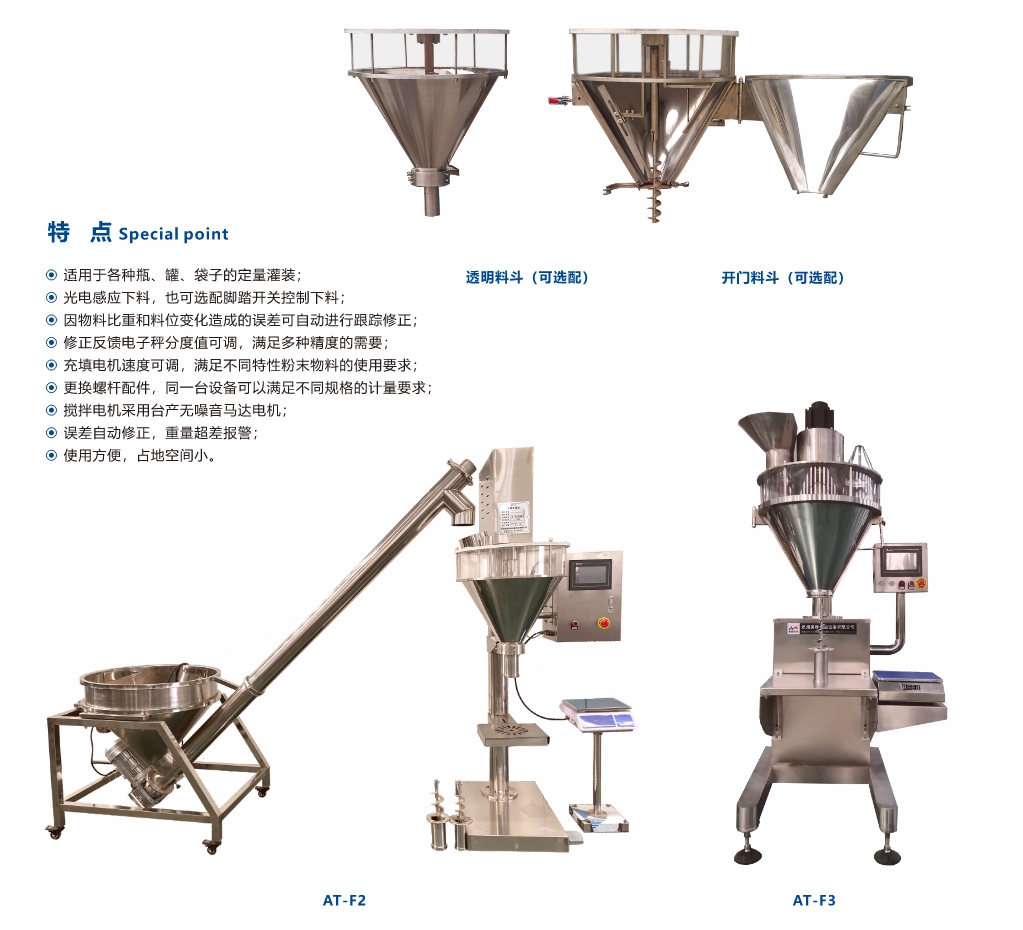

特 点Specialpoint

适用于各种瓶、罐、袋子的定量灌装;
光电感应下料，也可选配脚踏开关控制下料;
因物料比重和料位变化造成的误差可自动进行跟踪修正，
修正反馈电子秤分度值可调，满足多种精度的需要;
充填电机速度可调，满足不同特性粉末物料的使用要求
更换螺杆配件，同一台设备可以满足不同规格的计量要求
搅拌电机采用台产无噪音马达电机;
误差自动修正，重量超差报警;
使用方便，占地空间小。

可选配装置 Optional device:

1、下料电机可以自行选择步进电机或伺服电机(伺服电机扭矩更大，且高速时扭矩不降低,控制精度高，使用中比步进电机速度快30%);
2、料仓可选择普通不锈钢料仓、半透明料仓、对开门料仓(标配机型为普通不锈钢料仓);
3、可以选配自动上料机来实现自动上料及料仓料位控制(200克以上必需配自动上料机，保证料仓料位才能保证灌装精度);


1. The filling machine can choose the stepper motor or servo motor by itself (the servo motor torque is larger, the speed ishigh, the control precision is high, and the filling speed is 30% faster than the stepping motor);
2. The hopper can be made of ordinary stainless steel hopper, semi-transparent hopper, quick open hopper (standard type isordinary stainless steel hopper);
3. Automatic feeding machine can be purchased, equipped with automatic feeding machine to realize automatic feeding andmaterial position control (200 arams must be equipped with automatic feeding machine to ensure filling accuracy);

性能优势

现场视频

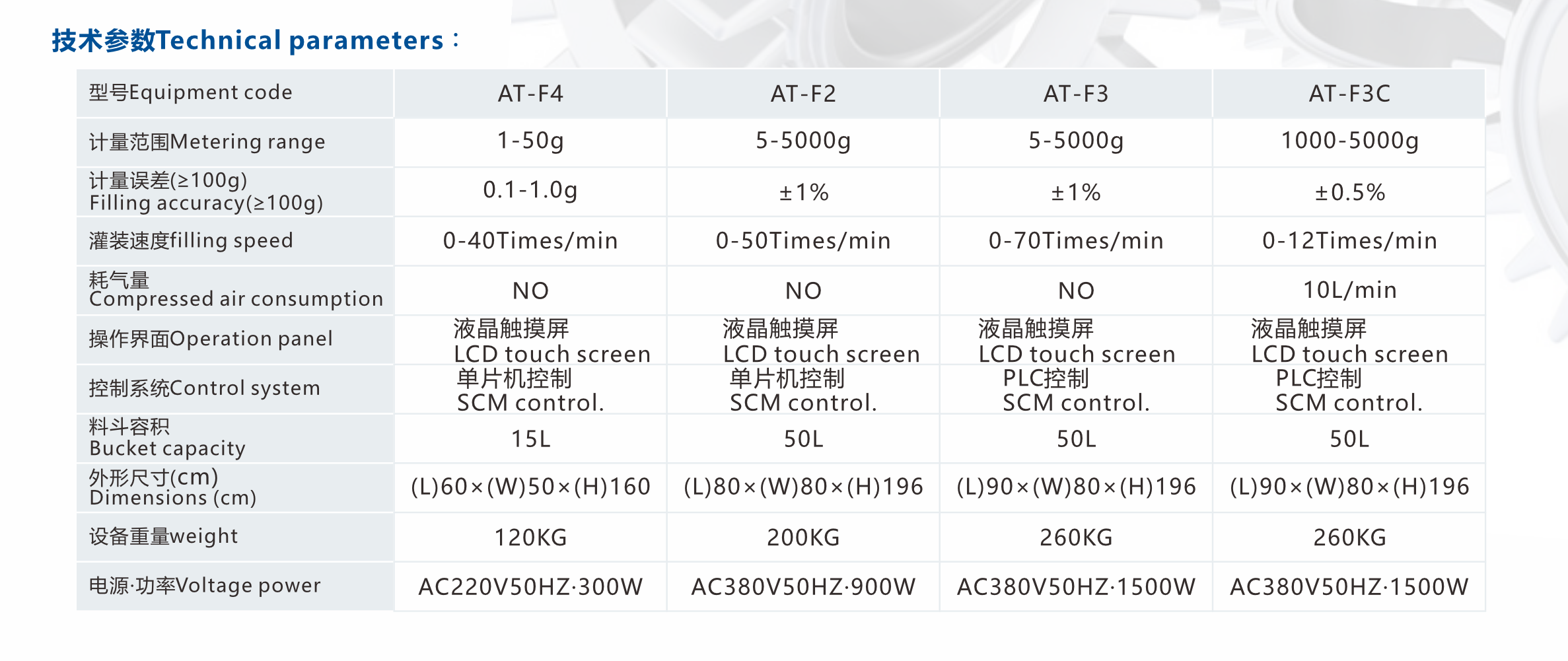

技术参数
